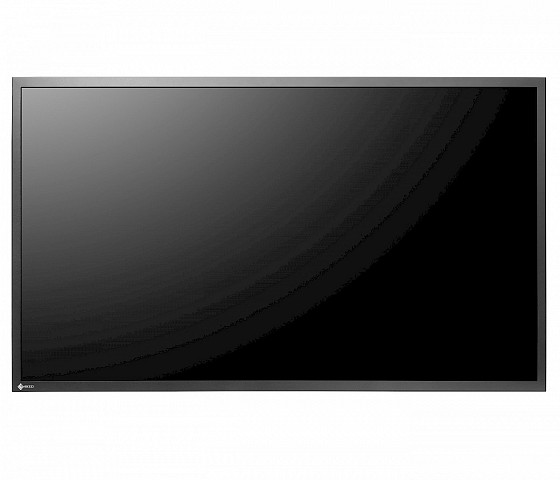

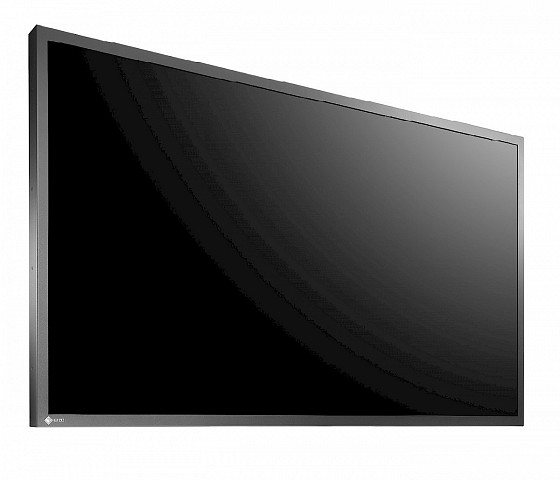

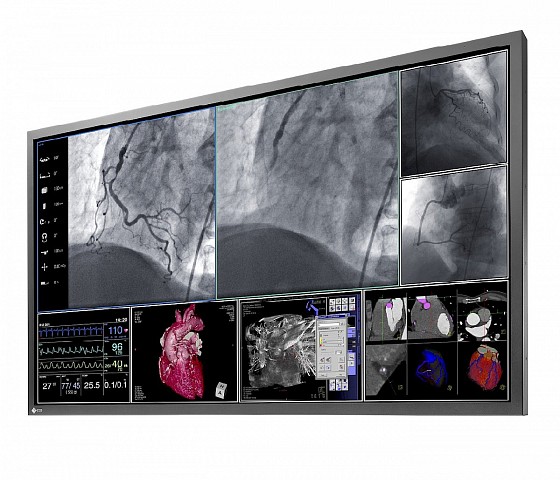

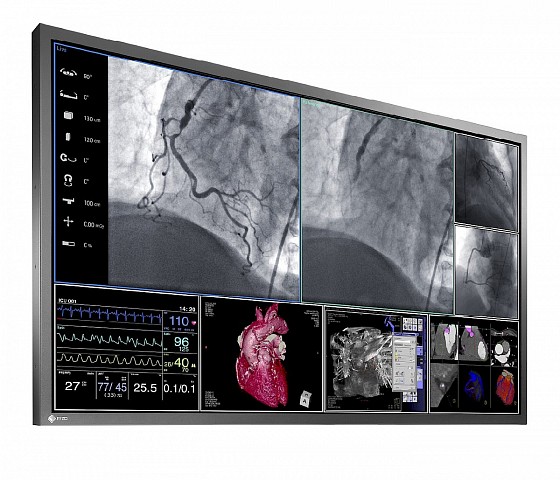

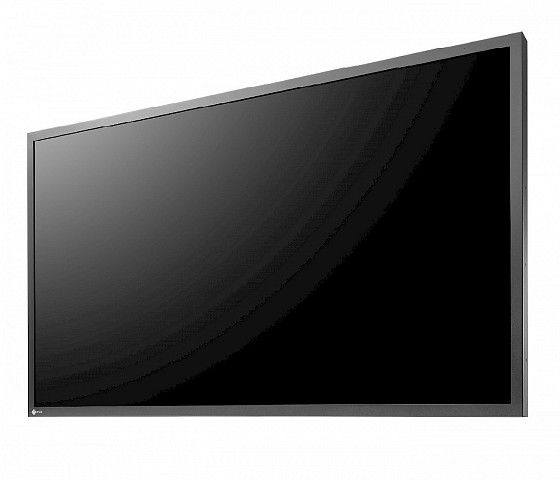

The 58 inch viewing area of LS580W enables a new dimension in medical imaging allowing high flexibility in arranging different screen layouts. Important pictures can be scaled to the desired size, less important information can be moved out of the focus. The LS580W supports life time luminance stability. Its tone curves match DICOM/CIE recommendations. The monitor can be mounted to ceiling suspensions and is ideal for operating rooms where multiple medical images need to be displayed simultaneously.

  • 58-inch LCD module with 8 megapixel (4K ultra HD) resolution.
  • Environmentally-friendly LED backlight offering a brightness of 700 cd/m².
  • Redundant components architecture for a high degree of operational reliability.
  • Factory-adjusted grayscale tones to meet DICOM Part 14 standard for optimum display of medical DICOM images.
  • 5 user-selectable 11-bit look-up tables enable accurate viewing of any type of medical image.
  • Homogeneous brightness uniformity across the entire screen.
Features
Monitor - Everything in a Single Glance

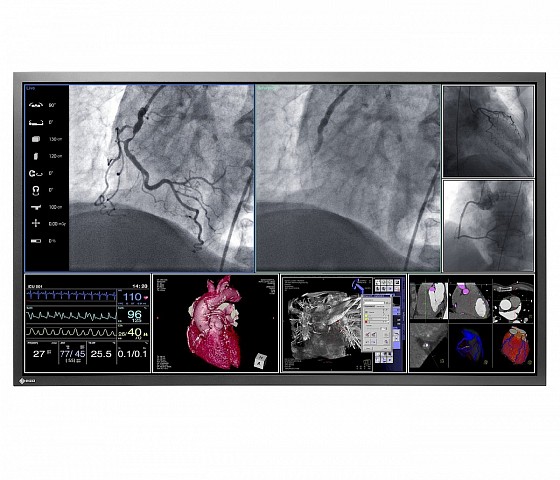

Everything in a Single Glance

Compared to solutions with multiple monitors, there are no regional color differences or obtrusive bezels between individual image sections on large screen monitors with high resolution, so that users can conveniently display important information on a single screen.
Monitor - Comfortably View from Any Angle

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, thus offering a quality image to multiple persons watching from different perspectives simultaneously.

Monitor - Quick Brightness Stabilisation

Quick Brightness Stabilization for Instant Viewing

EIZO's fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Monitor - Diagnostic Precision with Factory Adjustment

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.

Monitor - Maintain the Precision

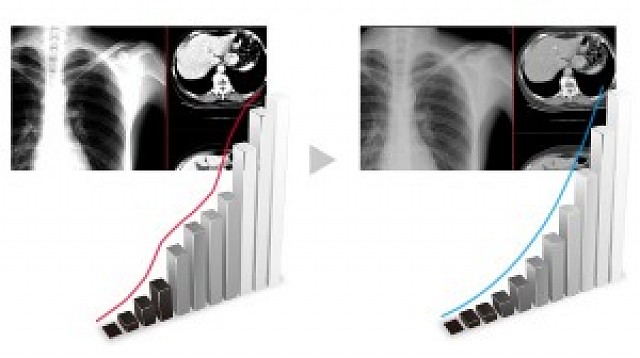

Maintain the Precision

Monitor calibration can be carried out to maintain DICOM Part 14 compliance for rendering consistency over time.

Monitor - Ensure Continued Operation

Ensure Continued Operation

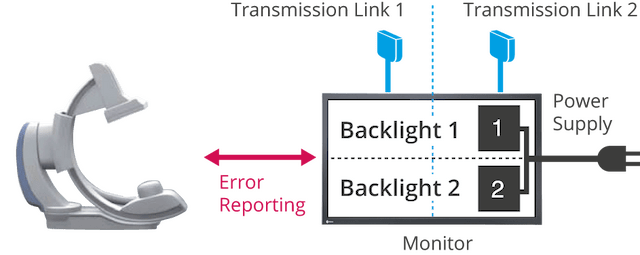

With its redundant components architecture (2 power supplies, 2 backlights, 2 transmission links), the LS580W ensures a high degree of operational reliability for fail-safe environments. A monitoring function can be configured to notify the imaging system if, for example, operating conditions become critical or a component fails.

Monitor - Brightness Uniformity for Constant Brightness Across the Screen

Brightness Uniformity for Constant Brightness Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is considered difficult to attain due to the characteristics of LCD monitors, especially with larger screen sizes.

Monitor - Work Safely with Minimal Picture Delay

Work Safely with Minimal Picture Delay

With images displayed on the screen in real time, time critical aspects of image distribution are addressed to ensure, for example safe catheter localization during insertion into an artery.

Monitor - LS580W - Keep Your Monitor Lit Longer

Keep Your Monitor Lit Longer

The monitor is equipped with two independent LED backlights that offer a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlights are mercury-free, they will also reduce any potential impact on the environment when they are disposed of.

Monitor - Arm Mountable VESA Compliance

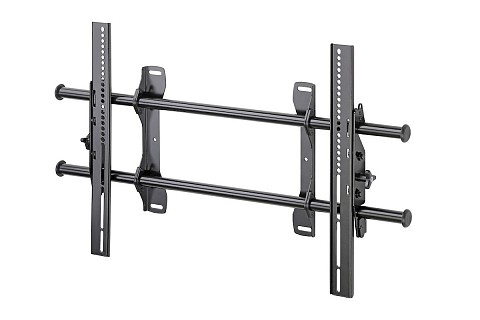

Installation on a VESA Ceiling Suspension

Compliance with the VESA standard enables attachment to existing mounting accessories.

Customer Assurance with Medical Standards

The monitor meets the high requirements of itnernational medical safety and EMC standards.

Specifications

General

Cabinet ColorBlack
Certifications & Standards (Please contact EIZO for the latest information)CE / UKCA (Medical Device), IEC/EN60601-1, CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI ES60601-1, EN60601-1-2 Class B, FCC-B, RCM, RoHS, China RoHS, WEEE, CCC, BIS
FDAClass II
Supplied Accessories (May vary by country. Please contact EIZO for details)Dual link signal cable (DVI-D - DVI-D) x 2, Utility Disk (PDF Instructions for Use)

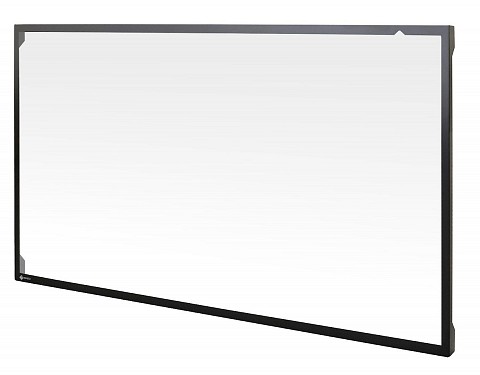

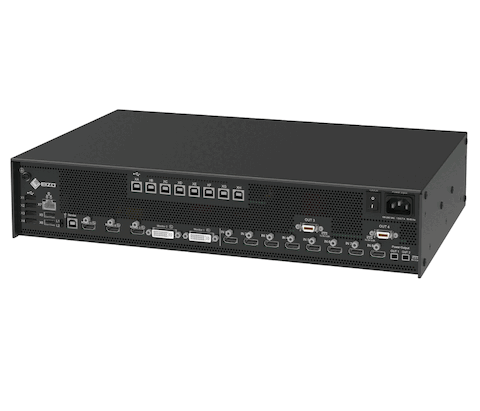

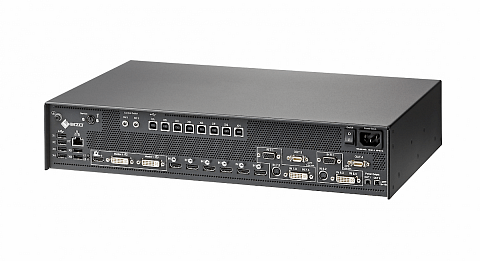

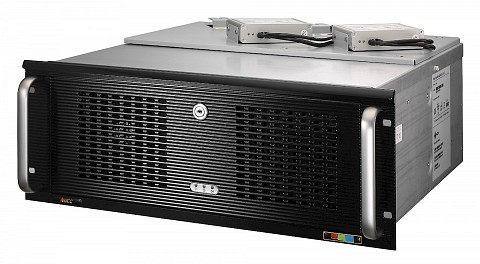

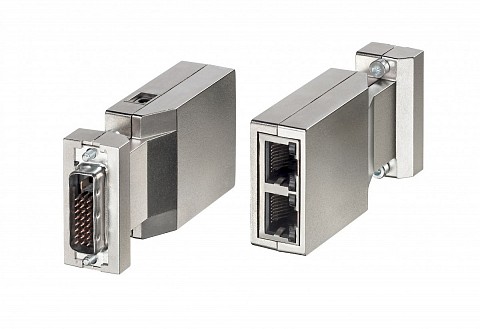

Optional AccessoriesLarge Monitor Manager LMM56800, LMM0802 or LMM0802-HDMI, DVI to HDMI cable, DVI to HDMI adapter, DVI Transmission Link TDL3600-QL (Quad Link), Protection Screen FPP580

Panel

TypeColor TFT LCD Panel (VA)
BacklightLED
Size146 cm / 57.5"
Native Resolution3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V)1270.1 x 721.4 mm
Pixel Pitch0.331 x 0.334 mm
Display Colors8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical)176° / 176°
Brightness (typical)700 cd/m²
Recommended Brightness for Calibration350 cd/m²
Contrast Ratio (typical)4000:1
Response Time (typical)9.5 ms (Midtone)
Color Gamut (typical)NTSC 72%

Video Signals

Input TerminalsDVI-D (dual link) x 2
Digital Scanning Frequency (H / V)131.3 kHz / 59.7 - 60.3 Hz

Power

Power RequirementsAC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption350 W
Power Save ModeLess than 38 W
Power ManagementDVI DMPM
Power OutputDC 5V, 1A (Hirose)

Features & Functions

MiscellaneousRedundant components (power supply, backlight, data transmission)
SensorBacklight Sensor

Environmental Requirements

Degree of ProtectionIP20

Physical Specifications

Net Weight (without Stand)47 kg
Hole Spacing (VESA Standard)400 x 400 mm, M8, depth 16 - 20 mm

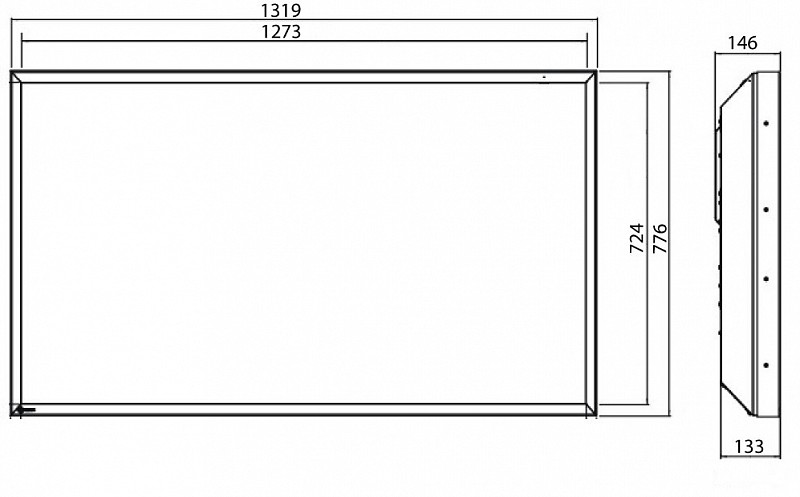

Dimensions
LS580W
