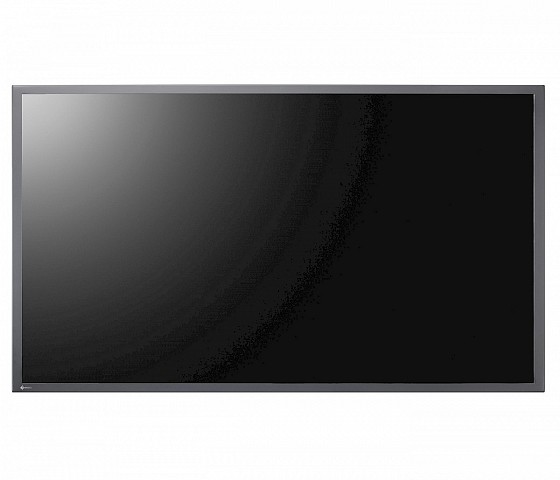

LX600WLX600W

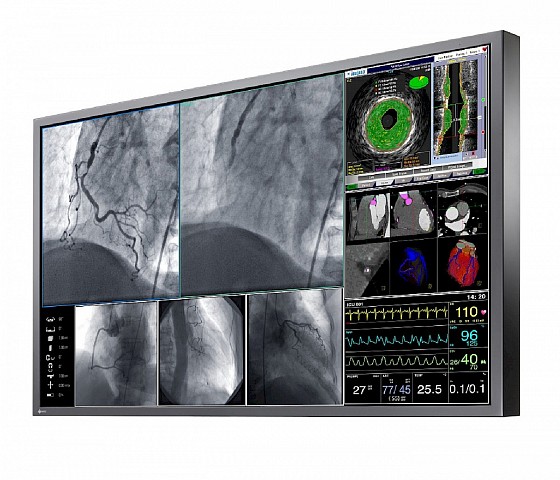

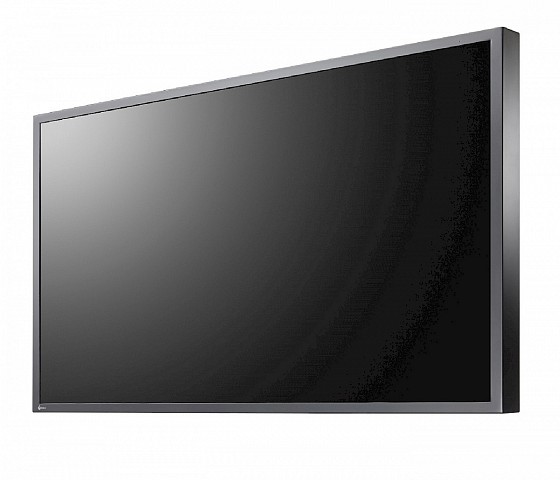

The large 60-inch viewing area enables flexible display of different modality images on one screen without distracting frames between individual pictures. The monitor's redundant components and LED backlight make it ideal for long-term stable and reliable use in the operating room.

  • Environmentally-friendly LED backlight offers a maximum brightness of 520 cd/m².
  • Redundant components architecture for a high degree of operational reliability.
  • Grayscale tones adjusted at the factory to meet DICOM Part 14 standard for optimum viewing of medical DICOM images.
  • 5 user-selectable 11-bit look-up tables enable accurate viewing of any type of medical image.
  • Homogeneous brightness uniformity across the entire screen.

This product is not produced anymore, but may still be available from stock.
Please contact your sales partner for more information.

Features

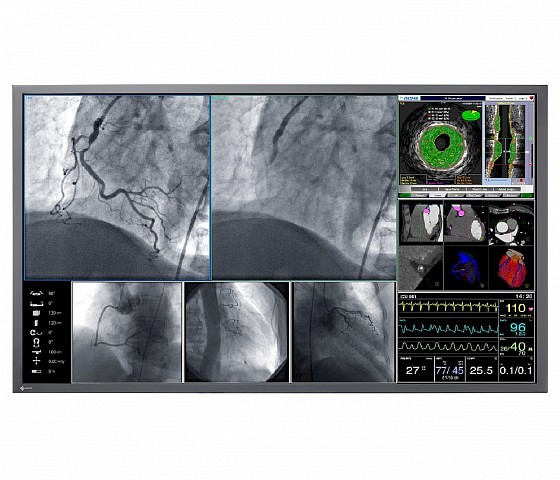

Monitor - Everything in a Single Glance

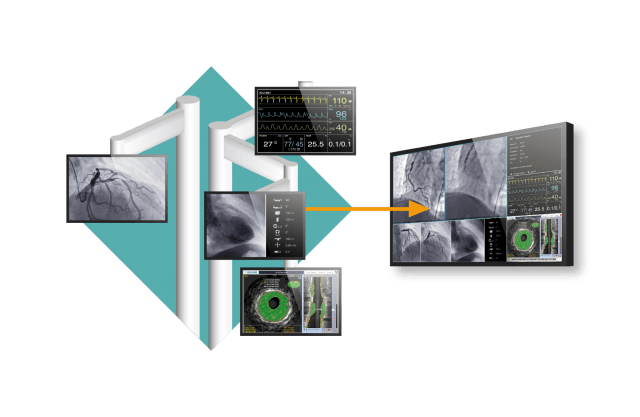

Everything in a Single Glance

Compared to solutions with multiple monitors, there are no regional color differences or obtrusive bezels between individual image sections on large screen monitors with high resolution, so that users can conveniently display important information on a single screen.
Monitor - Quick Brightness Stabilisation

Quick Brightness Stabilization for Instant Viewing

EIZO's fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Monitor - Consistency with DICOM Part 14 Calibration

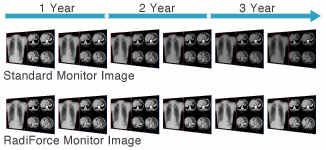

Consistency with DICOM Part 14 Calibration

The monitor is calibrated to comply with DICOM Part 14 to offer rendering consistency over time.

Monitor - Diagnostic Precision with Factory Adjustment

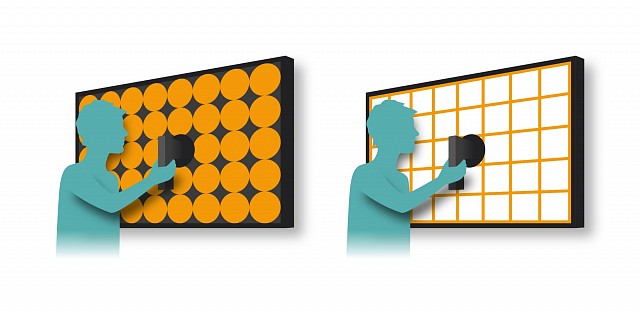

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.

Monitor - Brightness Uniformity for Constant Brightness Across the Screen

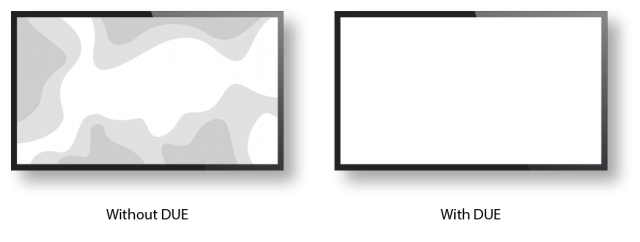

Brightness Uniformity for Constant Brightness Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is considered difficult to attain due to the characteristics of LCD monitors, especially with larger screen sizes.

Monitor - Comfortably View from Any Angle

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, thus offering a quality image to multiple persons watching from different perspectives simultaneously.

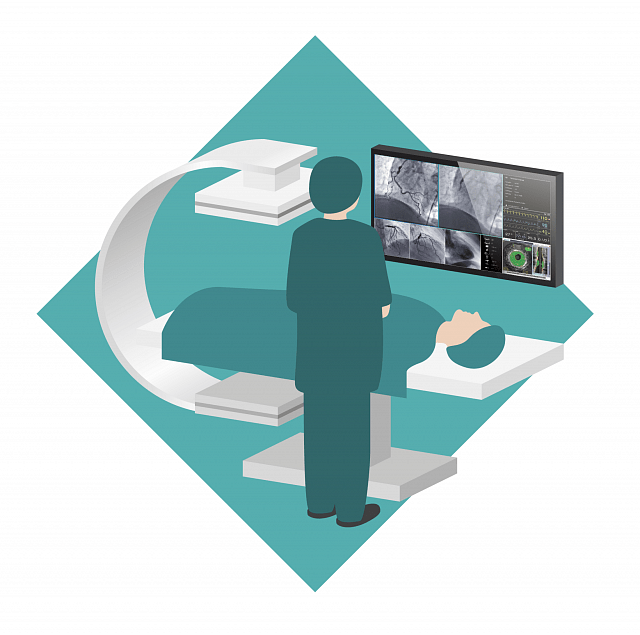

Monitor - Work Safely with Minimal Picture Delay

Work Safely with Minimal Picture Delay

With images displayed on the screen in real time, time critical aspects of image distribution are addressed to ensure, for example safe catheter localization during insertion into an artery.

Operational Reliability with Redundant Components

With its redundant components architecture (2 power supplies, 2 backlights), EIZO ensures a high degree of operational reliability. A monitoring function can be configured to notify the X-ray system if, for example, operating conditions become critical or a component fails.

Monitor - Environmentally-Friendly LED Backlight

Environmentally-Friendly LED Backlight

By utilizing an energy-efficient LED as a backlight, the monitor achieves good brightness values with low power consumption. In contrast to conventional CCFL technology, LED backlighting offers a longer monitor lifespan, is free of hazardous materials, and is therefore compliant with current environmental regulations.

Monitor - Arm Mountable VESA Compliance

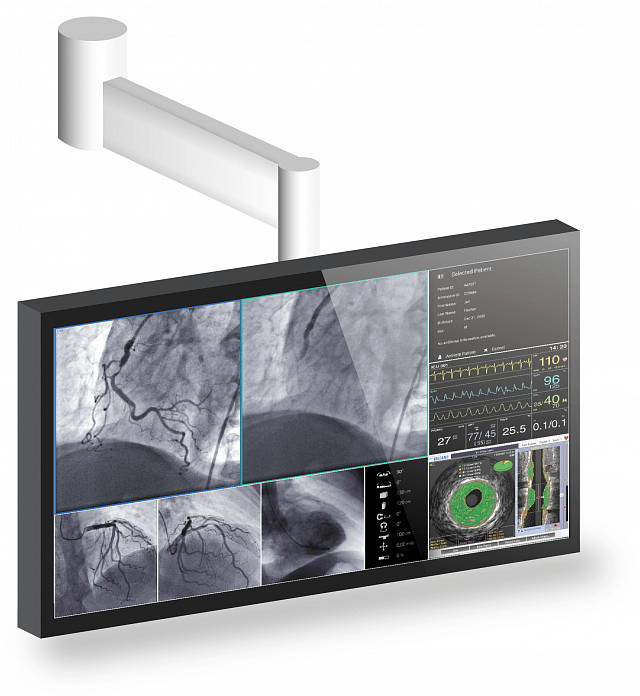

Installation on a VESA Ceiling Suspension

Compliance with the VESA standard enables attachment to existing mounting accessories.

LCD Panel Protector for Easy Cleaning

The panel protector secures the screen from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.

Customer Assurance with Medical Standards

The monitor meets the high requirements of itnernational medical safety and EMC standards.

Specifications

General

Model VariationsLX600W: Without Panel Protector
LX600WP: With Panel Protector
Cabinet ColorBlack
Certifications & Standards (Please contact EIZO for the latest information)CE (Medical Device Directive), IEC/EN60601-1, CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, GB4943.1 (non-tropical, altitude<2000 m), UL60601-1, FCC-A, RCM, RoHS, China RoHS, WEEE, CCC
Supplied Accessories (May vary by country. Please contact EIZO for details)AC power cord, dual link signal cable (DVI-D - DVI-D) x 2, Utility Disk (Instructions for Use)

Panel

TypeColor TFT LCD Panel (VA)
BacklightLED
Size153 cm / 60.1" (1,526 mm diagonal)
Native Resolution3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V)1330.0 x 748.0 mm
Pixel Pitch0.3465 x 0.3465 mm
Display Colors8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical)176° / 176°
Brightness (typical)520 cd/m²
Recommended Brightness for Calibration300 cd/m²
Contrast Ratio (typical)4000:1
Response Time (typical)6 ms (Midtone)

Video Signals

Input TerminalsDVI-D (dual link) x 2
Digital Scanning Frequency (H / V)131.3 kHz / 59.7 - 60.3 Hz

Power

Power RequirementsAC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption500 W
Power Save ModeLess than 41 W
Power ManagementDVI DMPM

Features & Functions

SensorBacklight Sensor x 2

Environmental Requirements

Degree of ProtectionIP20

Physical Specifications

Net Weight (without Stand)LX600W: 55 kg
LX600WP: 65 kg
Hole Spacing (VESA Standard)400 x 400 mm, M8, depth 16 - 20 mm

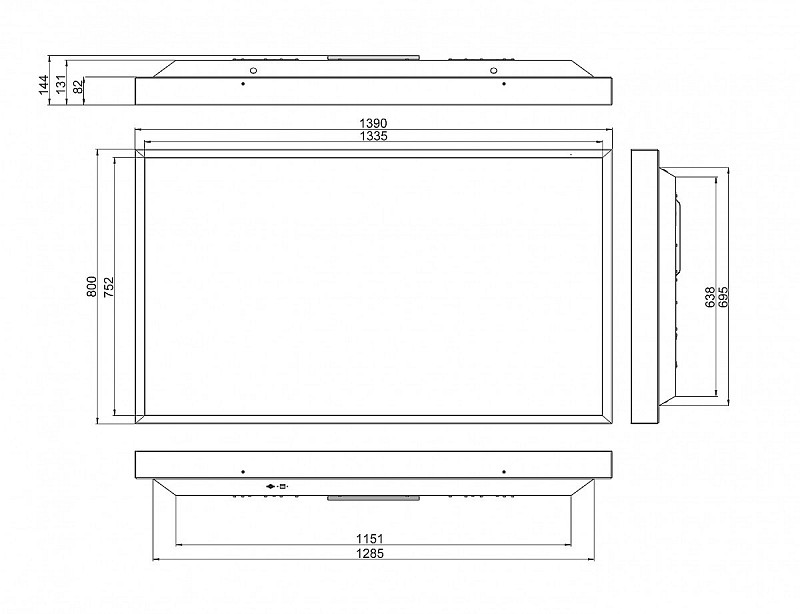

Dimensions
LX600W
Downloads

Brochures

Single Product Brochure LX600W

Single Product Brochure LX600W

383.90 KB

download / open in browser

Manuals

Instructions for Use LX600W

Instructions for Use LX600W

920.86 KB

version 003, valid from 11/2013

download/ open in browser
