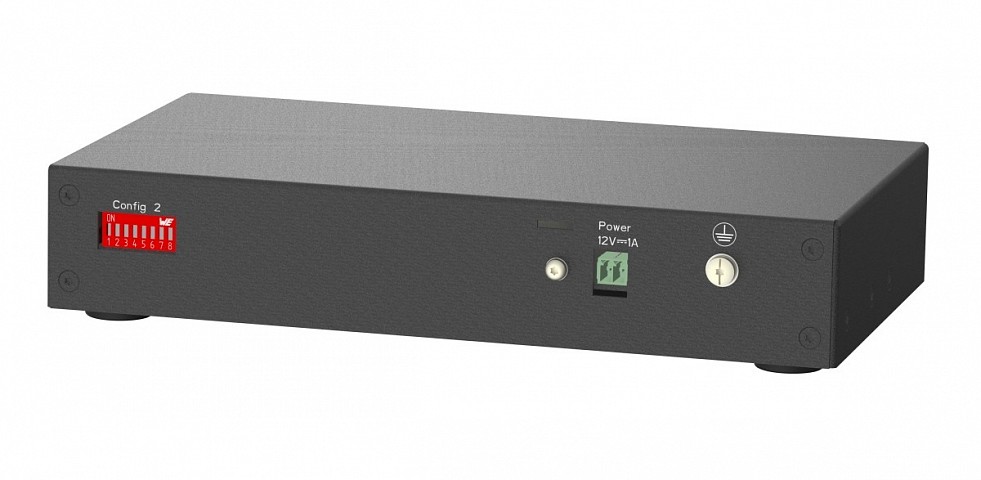

The TID0102 splits the DVI signal from the LMM0804 into two configurable signals. The TID0102-HDL provides additional HDL transmission technology to enable video transmission via traditional CAT cables at a distance of up to 70 m.

• TID0102-DVI or TID0102-HDL model available
• Flexible, configurable video output
• Variable EDID (Extended Display Identification Data) handling
• Automatic monitor detection at output

This product is not produced anymore, but may still be available from stock.
contact your sales partner for more information.


Variable Image Output During Signal Splitting

The TID0102-HDL can split the specific DVI dual link output signal of the LMM0804 into two standardized DVI single link signals and two high definition video links (HDL, with TID0102-HDl only) signals. Alternatively, the TID0102-HDL can split the DVI single link signal of any video source into two DVI single link and two HDL signals. As a result up to four monitors can be connected to the TID0102-HDL. The image contents of the monitors can be adapted variably to the respective requirements using DIP switches.

High Definition Video Link (HDL) Technology (TID0102-HDL only)

The TID0102-HDL enables video signals to be transmitted via HDL technology. HDL is a transmission technology optimized for a network cable (beginning with Cat5e). It is particularly suited for longer transmission distances with cable lengths up to 70 m.

Variable EDID handling

The EDID values of a connected monitor are sent through the TID0102 to the connected video source. The video source can be an LMM0804 or PC, for example. As an alternative setting, the video source can access EDID values that are stored in the TID0102. This enables operation independent of the EDID values of the connected monitors.

Hot Plug Detect and "Force"

Hot Plug Detect (HPD) can be set for every output of the TID010. HPD automatically detects when a monitor is removed from the corresponding output and then shuts down the output signal. Alternatively, Force can be set at every output of the TID0102. The output signal is then available continuously, regardless whether a monitor is connected.

Flexible Mounting Possibilities

The TID0102 can be mounted either vertically or horizontally. With the supplied mounting brackets, the device can be installed at a wall, on a table or in a 19“ rack.



Model VariationsTID0102-DVI: DVI-Splitter
TID0102-HDL: With additional HDL outputs
Cabinet ColorBlack
Certifications & Standards (Please contact EIZO for the latest information)CE, IEC60950-1, CSA – C22.2 No. 60950-1, FCC-B, RoHS, RCM, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details)AC adapter (TID0102-HDL only), signal cable (DVI dual link, 0.5 m), mounting brackets x 2, holder x 2, Utility Disk (PDF Instructions for Use)

Video Signals

Input TerminalsDVI
Input ResolutionMaximum 1920 x 1200, 60Hz or 2048 x 1536, 30Hz or 1600 x 1200, 60Hz (165 MHz pixelclock maximum, horizontal size 2048 maximum)
Output TerminalsTID0102-DVI: DVI x 2
TID0102-HDL: DVI x 2, RJ45 (HDL) x 2
Output ResolutionDVI: maximum 1920 x 1200, 60Hz or 2048 x 1536, 30Hz or 1600 x 1200, 60Hz (165 MHz pixelclock maximum, horizontal size 2048 maximum)
HDL: maximum 1920 x 1080, 60 Hz

Features & Functions

Control and StatusConfiguration:
Dip switch 8pin x 2


Power RequirementsTID0102-DVI: 5 V thru LMM0804
TID0102-HDL: 12 V thru external power adapter
Maximum Power ConsumptionTID0102-DVI: 3.6 W
TID0102-HDL: 8.4 W

Environmental Requirements

Degree of ProtectionIP20

Physical Specifications

Net Weight0.9 kg
Mechanical Installation19“ Rackform (half), 1 U high
