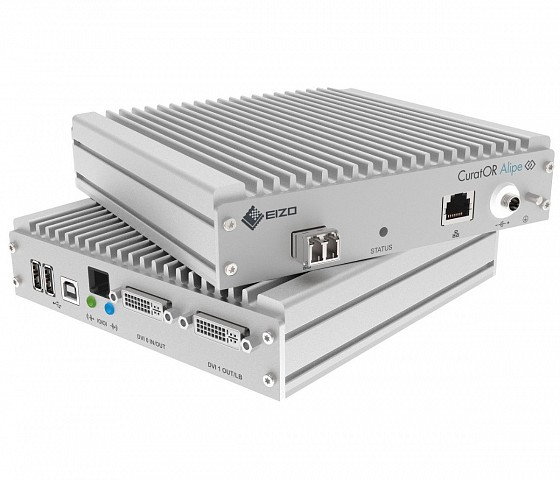

With TIP0210-DVI, image and video data, as well as control signals, can be transmitted with zero latency or loss in a 10 Gbit network. As a result, a flexible video routing can be realized using standardized, forwardlooking network technology.

  • Uncompressed, loss-free data transmission of 10 Gbit/s
  • Transmission with zero latency, for better hand-eye coordination
  • One device per software can be used as a decoder and encoder
  • Up to two video links per device can be processed
  • Multiple views on a monitor possible through one signal
  • Passive cooling

This product is not produced anymore, but may still be available from stock.
PleaseĀ contact your sales partner for more information.

Accessory - TIP0210-DVI - Data Transmission

Lossless Transmission

TIP0210-DVI transmits data in full HD resolution at a frame rate of 60 Hz with speeds as high as 10 Gbps. The device achieves this without compression and fully retains the color space, ensuring
optimum image quality.

Accessory - TIP - all - Zero Latency

Instantaneous Image Viewing

Images are transmitted without any visual delay, offering a seamless hand-eye coordination experience for the attending physician. He/she receives direct visual response to his/her actions, for example during endoscopic interventions.

Accessory - TIP - all - Extended Distances

Extensive Transmission Distance

Data is transmitted via fiber-optic cable, enabling transmission distances of up to 10 kilometers. As a result, not only separate rooms, but entire buildings can be linked to one another, with image data and audio seamlessly transmitted between them. This is useful for transmitting data within and outside of the OR, as well as to conference rooms, lecture halls, and other locations.

Accessory - TIP - 2K4K30 - Universal Application

Universal Application

The IP Transceiver can be used simultaneously as an encoder and decoder. This simplifies installation and saves on time and labor costs associated with storage and maintenance of the entire system.

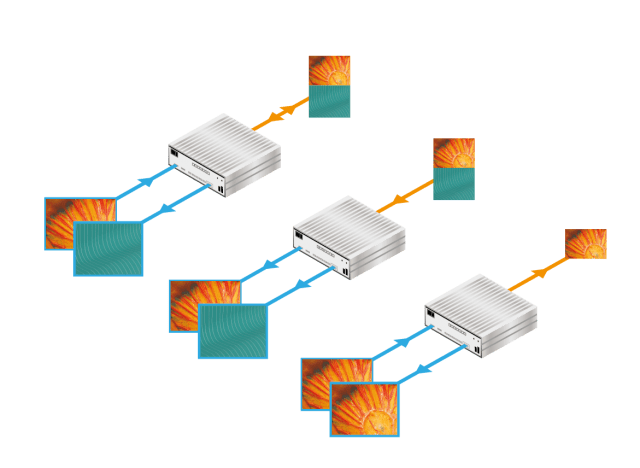

Accessory - TIP0210-DVI - Two video

Two Signals Simultaneously

Up to two video links can be processed concurrently with one TIP0210-DVI. This means that one of the DVI video interfaces can be used as the input, and the other DVI interface as the output, at the same time. The connected video signal can also be looped back through the second DVI interface.

Accessory - TIP - all - Mouse and Keyboard

Remote Operation Possible

IP-based data transmission enables the use of the same network cables for the transmission of all information, whether image, audio, video, or control of a keyboard and mouse. Thus for example, a computer in a remote computing center can be operating via the EIZO system directly from OR.

Accessory - TIP - all - Video Management

Integrated Video Management

Various video sources can be displayed simultaneously on a screen using a single cable. This enables various multiple views.

Accessory - TIP - all - Passive Cooling

Passive Cooling

The IP Transceiver implements passive cooling for noiseless operation and minimal mechanical wear. This also eliminates any interference with the laminar flow in the OR to prevent unwanted movement of dust particles and bacteria.

Accessory - TIP - all - existing systems

Integration into Existing Systems

The IP Transceiver is compatible with a wide assortment of commercially-available network components and can be integrated into existing systems and applications.



Cabinet ColorSilver
Certifications & Standards (Please contact EIZO for the latest information)CE, IEC60950, tested for IEC60601-1-2, RoHS, Reach, WEEE
Optional AccessoriesOptical module (SFP+ 10G LC), power supply, connecting and mounting accessories


Data Rate10 Gbit/s

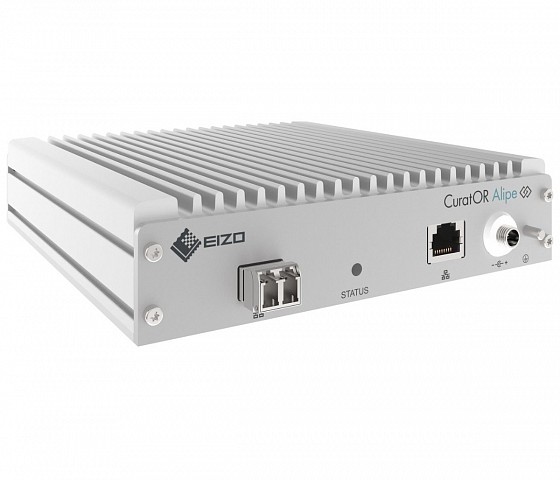

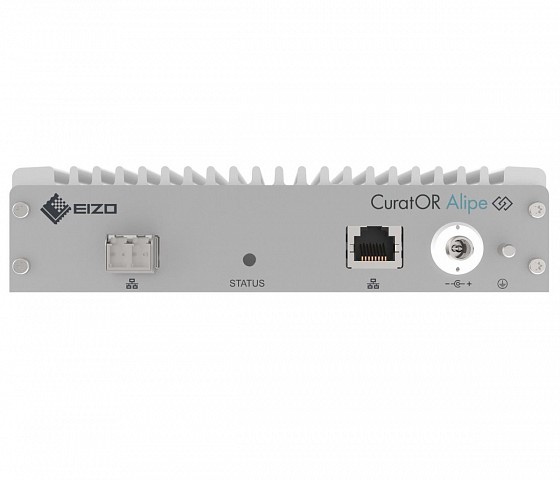

ConnectorSFP+ (10 GbE, optional SFP+ module)
CableLWL duplex LC/LC (SFP+ module necessary)

Video Signals

Input ResolutionUp to FHD (1920 x 1080) and WUXGA (1920 x 1200), 1 x uncompressed, 60 Hz and 30 Hz, progressive and interlaced
Output ResolutionUp to FHD (1920 x 1080) and WUXGA (1920 x 1200), 2 x uncompressed, 60 Hz and 30 Hz, progressive

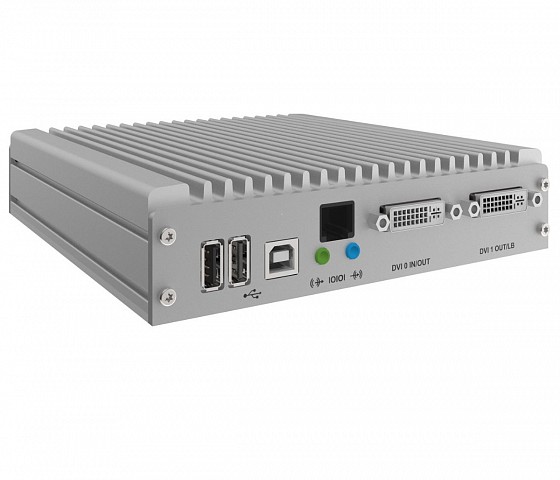

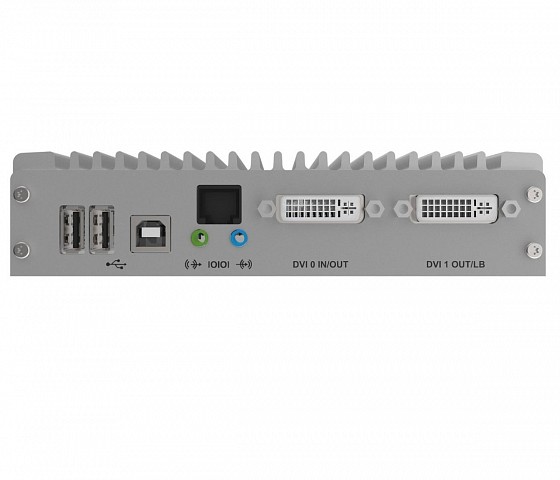

InterfaceDVI-D (in/out), DVI-D (out/ loop through)
ModesSingle In / Single Out (up to FHD and WUXGA),
In/Out (up to FHD and WUXGA),
Dual Out (up to FHD and WUXGA),
Loop Through (up to FHD and WUXGA)
MultiviewSide-by-Side, Picture-in-Picture, QuadView, 3+1 and 1+3 Righ

Interface Specifications

AudioAudio jack x 2 (in, out)
USB PortsUSB/A x 2, USB/B

Features & Functions

Control and StatusMouse and keyboard control
Remote ControlRemote diagnosis, remote firmware update


Power RequirementsExternal power supply, 230 AC
Maximum Power Consumption17 W, optional: 5 W (for USB), passive cooling

Physical Specifications

Net Weight1050 g
