This Full HD widescreen monitor is ideally suited for viewing images in surgical environments.

• 27-inch LCD module with 1080p (Full HD) resolution (1920 x 1080 pixels).
• Powerful LED backlight with over 500 cd/m² luminance for an optimal presentation of critical images.
• 5 factory calibrated look-up tables for quick and easy adaptation to diverse application and viewing environments.
• Sleek, encapsulated design with laminated safety glass and an unsurpassed IP rating ideally suited to the OR environment.

This product is not produced anymore, but may still be available from stock.
Please
contact your sales partner for more information.

Features

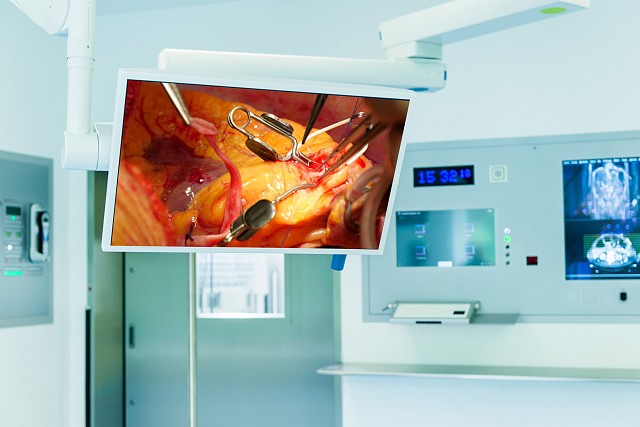

Monitor - EX271W - Exceptional High-Brightness and High-Definition

Exceptional High-Brightness and High-Definition

With a native resolution of 1920 x 1080 and a typical brightness of more than 500 cd/m², the monitor can display original, 1080p (Full HD) images without blurring or distortion irrespective of the local ambient lighting conditions.

Monitor - EX271W - Quick and Easy Installation

Quick and Easy Installation

With 5 factory calibrated look-up tables and integrated mirroring functions, the monitor can be quickly and easily adapted to the local viewing conditions and preferences of the surgeon.

Monitor - EX271W - Diagnostic Precision with Factory Adjustment

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent images possible, EIZO carefully measures and sets every tone on the production line to offer image quality tailored specifically to medical needs like DICOM Part 14 or gamma 2.2.

Monitor - Quick Brightness Stabilisation

Stable Brightness and Instant Image Display

EIZO’s fully automated stability function uses an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Monitor - EX271W - Safety Glass

Laminated Safety Glass for Easy Cleaning

The anti-reflective laminated safety glass ensures excellent image quality while protecting the monitor from scratch damage or liquid ingress during surgery or when cleaning and disinfecting the monitor.

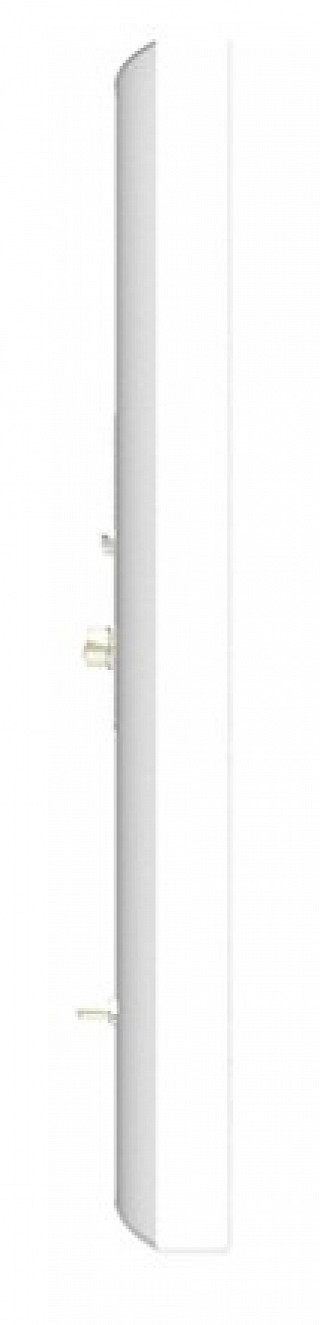

Monitor - EX271W - Sleek, Encapsulated Housing

Sleek, Encapsulated Housing

With a depth of roughly 4 cm, the sleek, curved housing offers a minimized footprint and no connection clutter to ease installation and save precious space in the operating room environment.

Monitor - Comfortably View from Any Angle

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, providing a clear view, especially when multiple people need to see the screen simultaneously.

Monitor - Fanless Silent Design

Fanless Silent Design

Engineered to dissipate heat without a fan, the monitor generates no distracting noises and does not circulate dust and germs or disturb the controlled laminar airflow within the operating room.

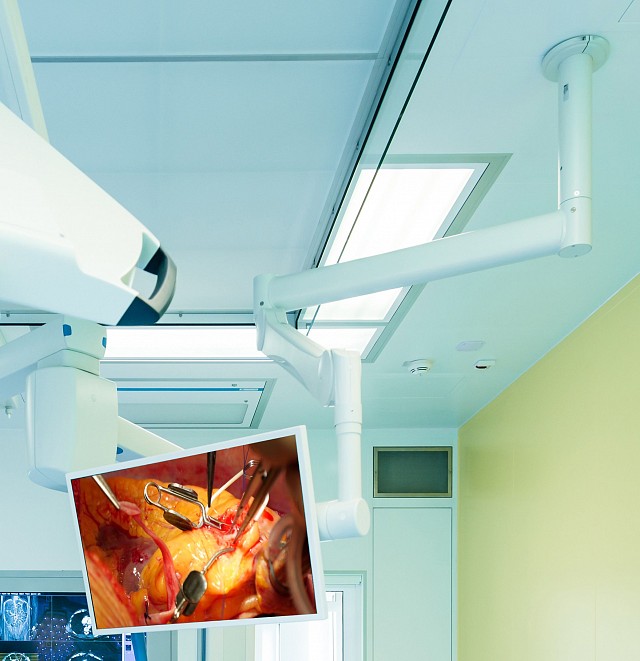

Monitor - EX271W - Arm Mountable VESA Compliance

Arm Mountable VESA Compliance

The monitor can be easily mounted onto new or existing VESA-compliant suspension units and flexibly positioned with the forward spacer and positioning rail mount accessories.

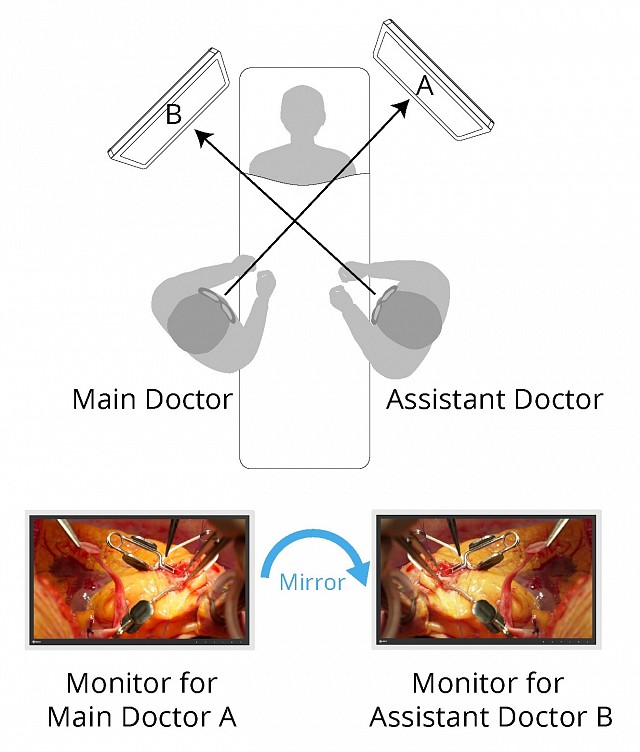

Monitor - EX271W - Mirroring for an Alternative Viewpoint

Mirroring for an Alternative Viewpoint

The mirror viewing function displays the inverse image (horizontal or vertical) of the original video signal to support the viewing direction of the surgical assistant.

Customer Assurance with Medical Standards

The monitor meets the high requirements of itnernational medical safety and EMC standards.

Specifications

General

Model VariationsEX271W-DVI: DVI input module
EX271W-TDL: TDL input modue
EX271W-3GS: 3G-SDI input module
EX271W-HDL: HDL input module
Cabinet ColorWhite
Certifications & Standards (Please contact EIZO for the latest information)CE / UKCA (Medical Device), IEC/EN60601-1, CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, UL60601-1, FCC-B, RCM, RoHS, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details)AC power supply to medical standards, signal cable (DVI-D single link), forward spacer, positioning rail, mounting screws, Utility Disk (instructions for use)
Optional AccessoriesTDL0000-T (TDL Transmitter), PSU for OR monitor, power extension cord (15 m)

Panel

TypeColor TFT LCD Panel (IPS)
BacklightLED
Size68.6 cm / 27"
Native Resolution1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V)597.8 x 336.3 mm
Pixel Pitch (H x V)0.311 x 0.311 mm
Display Colors8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical)178° / 178°
Brightness (typical)600 cd/m²
Contrast Ratio (typical)1000:1
Response Time (typical)8 ms (midtone)

Video Signals

Input TerminalsEX271W-DVI: DVI-D
EX271W-TDL: RJ45 (TDL)
EX271W-3GS: BNC (3G-SDI)
EX271W-HDL: RJ45 (HDL)
Output TerminalsLoop Through:
BNC (3G-SDI, EX271W-3GS only)
Digital Scanning Frequency (H / V)V: 50 - 64 Hz (DVI single link)

Power

Power RequirementsAC adapter input: 100 - 240 V: 50 - 60 Hz
Monitor input (M12): 24 V DC, 2.5 A
Maximum Power Consumption55 W
Power Save Mode5.2 W (lamp off mode)
20.6 W (lamp dimmed mode)
Power ManagementDVI DMPM

Features & Functions

MiscellaneousMirroring
SensorBacklight Sensor, Temperature Sensor
OSD LanguagesEnglish

Environmental Requirements

Degree of ProtectionFront surface: IP65
Rear housing:
EX271W-DVI: IP42
EX271W-TDL: IP41
EX271W-3GS: IP54
EX271W-HDL: IP41

Physical Specifications

Net Weight (without Stand)10 kg
Hole Spacing (VESA Standard)100 x 100 mm, M4, depth 5 - 7 mm (added flexibly with forward spacer and positioning rail adapters)
Dimensions
EX271W
