LX550W

The large 55-inch screen with 4K UHD resolution is ideal for displaying medical images for angiography, cardiology or endoscopy in medical environments and can be mounted on a wall or ceiling mount. The monitor's redundant components and LED backlight make it ideal for long-term stable and reliable use in the operating room.

Wide viewing angle with IPS LCD technology.
Quick on-site adjustment to different image types and prevailing ambient brightness.
Grayscale tones adjusted at the factory to meet DICOM Part 14 standard for optimum viewing of medical DICOM images.
Redundant components architecture for a high degree of operational reliability.
Homogeneous brightness uniformity across the entire screen.

This product is not produced anymore, but may still be available from stock.
Please contact your sales partner for more information.

Features

Monitor - LX550W - Uniform Image Quality

Uniform Image Quality from All Angles

This large-format monitor is fitted with a high-quality IPS panel characterized by a very wide viewing angle. Image reproduction is thus made even more precise and efficient, regardless of the viewing angle.

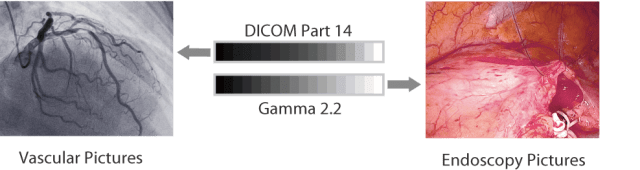

Quick On-Site Adjustment

The built-in On-Screen Display (OSD) can quickly adjust the monitor to different image types and the prevailing ambient brightness at the installation site. Service technicians can also quickly and easily adjust the grayscale display on site to suit their needs.

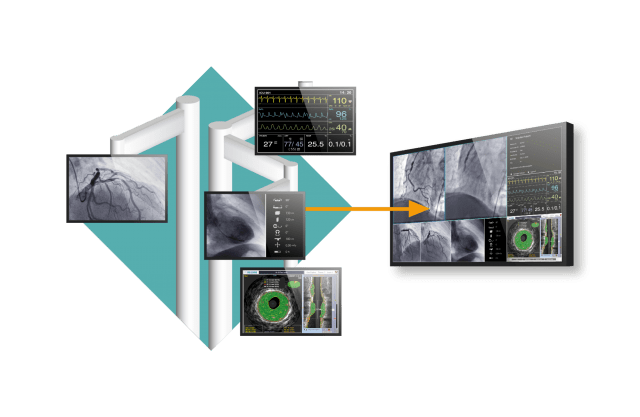

Everything in a Single Glance

Compared to solutions with multiple monitors, there are no regional color differences or obtrusive bezels between individual image sections on large screen monitors with high resolution, so that users can conveniently display important information on a single screen.

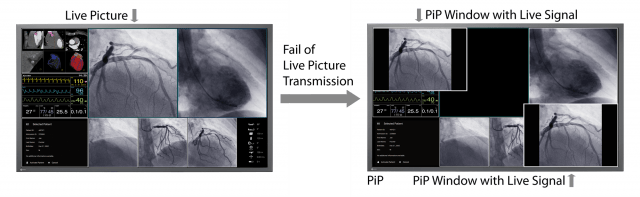

Superimposed Image Display for Emergency Signals

With the Picture-in-Picture (PiP) function multiple source images can be shown at the same time on the LX550W, so as to display a live signal directly on the monitor in an emergency, for instance.

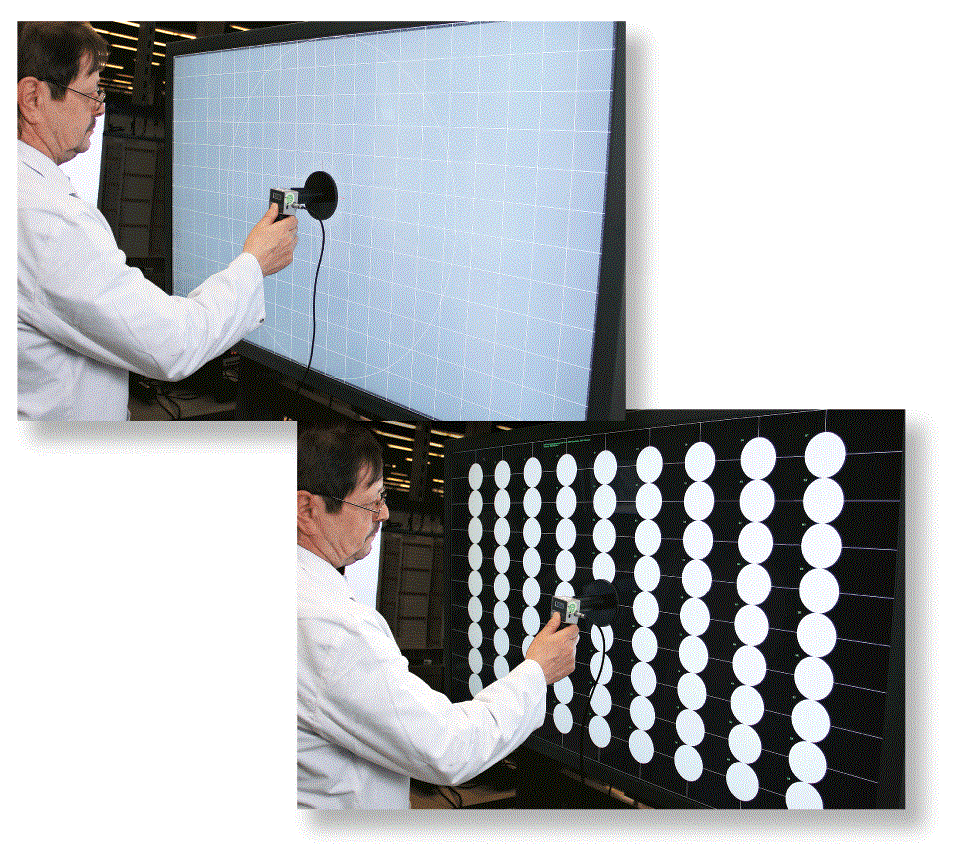

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent images possible, EIZO carefully measures and sets every tone on the production line to offer image quality tailored specifically to medical needs like gamma 2.2 and the DICOM Part 14 Standard.

Monitor - Quick Brightness Stabilisation

Stable Brightness and Instant Image Display

EIZO’s fully automated stability function uses an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Consistency with DICOM Part 14 Calibration

The monitor is calibrated to comply with DICOM Part 14 to offer rendering consistency over time.

Monitor - Brightness Uniformity for Constant Brightness Across the Screen

Uniformity Across the Screen

LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen. EIZO’s patented Digital Uniformity Equalizer (DUE) technology corrects these deviations for a more uniform image.

Work Safely with Minimal Picture Delay

Images are displayed in real-time with minimal picture delay to ensure that time-critical procedures, such as catheter localization, can be performed accurately.

Operational Reliability with Redundant Components

With its redundant components architecture (2 power supplies, 2 backlights), EIZO ensures a high degree of operational reliability. A monitoring function can be configured to notify the X-ray system if, for example, operating conditions become critical or a component fails.

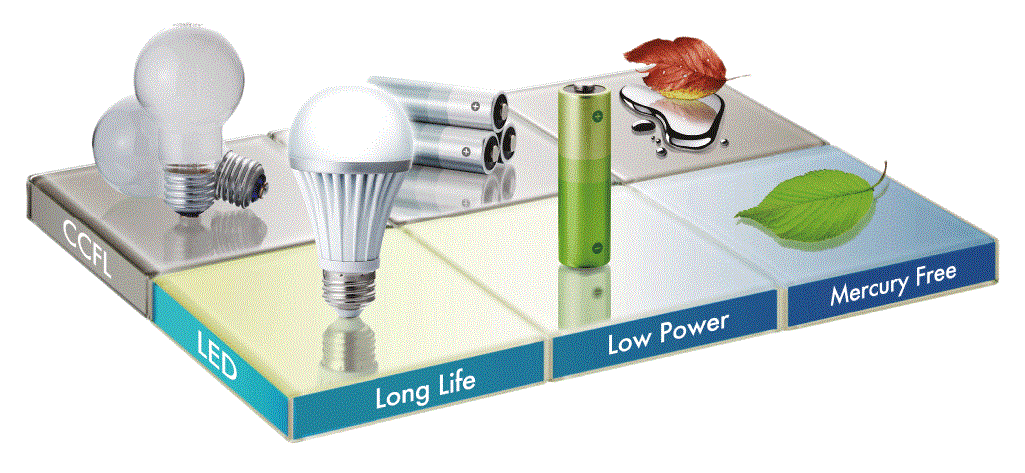

Keep Your Monitor Lit Longer

The monitor is equipped with two independent LED backlights that offer a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlights are mercury-free, they will also reduce any potential impact on the environment when they are disposed of.

Installation on a VESA Mount

Compliance with the VESA standard enables attachment to existing mounting accessories, such as a ceiling suspension or wall fixture.

Optional LCD Panel Protector for Easy Cleaning

The monitor can be equipped with a panel protector. This secures the screen from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.

Customer Assurance with Medical Standards

The monitor meets the high requirements of itnernational medical safety and EMC standards.

Specifications

General

Cabinet Color	Black
Certifications & Standards (Please contact EIZO for the latest information)	CE (Medical Device), IEC/EN60601-1, CAN/CSA C22.2 No. 60601-1:14, ANSI/AAMI ES60601-1:2005, EN60601-1-2 Class B, FCC-B, RCM, RoHS, China RoHS, WEEE, CCC, BIS
Supplied Accessories (May vary by country. Please contact EIZO for details)	AC power cord (eu, us), dual link signal cable (DVI-D - DVI-D) x 2, Utility Disk (PDF Instructions for Use)
Optional Accessories	Protection Screen FPP5500

Panel

Type	Color TFT LCD Panel (IPS Pro)
Backlight	LED
Size	138.8 cm / 55"
Native Resolution	3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V)	1209.6 x 680.4 mm
Pixel Pitch (H x V)	0.315 x 0.315 mm
Display Colors	10-bit colors: 1.07 billion colors
Viewing Angles (H / V, typical)	178° / 178°
Brightness (typical)	700 cd/m²
Recommended Brightness for Calibration	400 cd/m²
Contrast Ratio (typical)	1450:1
Response Time (typical)	10 ms (black to white) 9 ms (white to black)

Video Signals

Input Terminals	DVI-D 24 pin (dual link) x 2, DP1.1 x 2, HDMI (DVI-Signal single link) x 2
Digital Scanning Frequency (H / V)	131.3 kHz / 60 Hz

USB

Upstream	USB 2.0: Type-B
Downstream	USB 2.0: Type-A x 2

Power

Power Requirements	AC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption	400 W
Power Save Mode	25 W
Power Management	DMPM

Features & Functions

Miscellaneous	LUT-Switch (Cal-Switch), Picture-in-Picture (PiP), redundant components (power supply, backlight)
Sensor	Backlight Sensor
OSD Languages	English
