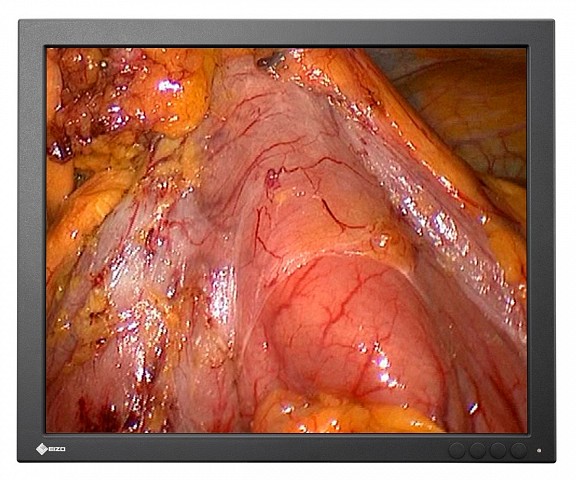

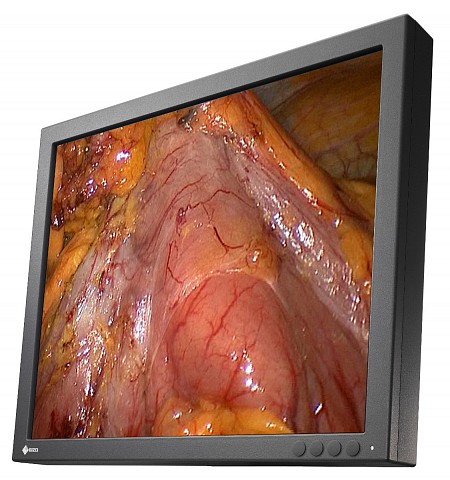

SCD 19102SCD 19102

The SCD 19102 produces color and gray scale images for the accurate, high-speed presentation of motion studies and dynamic images in endoscopy, surgery, cardiac imaging, and ultrasound. Like all displays from EIZO, the device is pre-calibrated in the factory. The five integrated look-up tables (LUTs) loaded with practice-oriented settings of high image quality are stored in the display enabling the use of standard graphics boards. The display can be set and re-calibrated in the field in accordance with the CIE or DICOM (Digital Imaging and Communications in Medicine) standard.

  • 19-inch LCD module with 1 megapixel resolution offering a maximum brightness of 330 cd/m²
  • Fully automated luminance stability through the Integrated Stability System (ISS)
  • CIE/DICOM compliant gray scale response built into the display
  • Adjustable color point for optimized display matching
  • Fully supported by the RadiCS quality assurance tool
  • 5 user defined 10 bit look up tables adaptable to diverse reading and viewing environments
  • Gamma response calibrated during manufacturing to provide consistent image quality from one display to the next
  • State of the art video signal rendering; video standards: PAL, NTSC
  • Force Mode for tailoring the display to even the most specialized timing requirements

This product is not produced anymore, but may still be available from stock.
Please contact your sales partner for more information.

Monitor - Comfortably View from Any Angle

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, providing a clear view, especially when multiple people need to see the screen simultaneously.

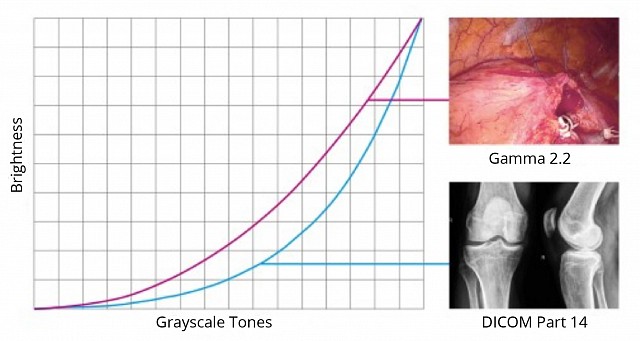

Monitor - SCD 19102 - Factory Adjustment

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent images possible, EIZO carefully measures and sets every tone on the production line to offer image quality tailored specifically to medical needs like gamma 2.2 and DICOM Part 14 Standard.

Monitor - Quick Brightness Stabilisation

Stable Brightness and Instant Image Display

EIZO’s fully automated stability function uses an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Wide Range of Input Support

EIZO offers multiple input signals to allow connections with both legacy and state-of-the-art endoscopic systems without the need of other optional devices or costs. With loop-through output support, the monitors are also ideally suited for multi-monitor integration or archiving in the operating room.

Clear Image with I/P Conversion

To minimize motion artifacts that normally occur during interlace/progressive (I/P) conversion, this model detects the amount of change between images over time and applies the ideal amount of correction.

Monitor - Space-Efficient Installation

Space-Efficient Installation

With its compact size and VESA mount compatibility, the 19-inch color monitor serve as efficient alternative for use in environments with limited space.

Monitor - Environmentally-Friendly LED Backlight

Environmentally-Friendly LED Backlight

By utilizing an energy-efficient LED as a backlight, the monitor achieves good brightness values with low power consumption. In contrast to conventional CCFL technology, LED backlighting offers a longer monitor lifespan, is free of hazardous materials, and is therefore compliant with current environmental regulations.

Monitor - Arm Mountable VESA Compliance

Installation on a VESA Mount

Compliance with the VESA standard enables attachment to existing mounting accessories, such as a ceiling suspension or wall fixture.

LCD Panel Protector for Easy Cleaning

The panel protector secures the screen from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.

Customer Assurance with Medical Standards

The monitor meets the high requirements of itnernational medical safety and EMC standards.



Model VariationsSCD 19102 D: With Stand
SCD 19102 C: Without Stand
SCD 19102 CP: Without Stand, with Panel Protector
Cabinet ColorBlack
Certifications & Standards (Please contact EIZO for the latest information)CE/UKCA (Medical Device), IEC/EN60601-1, CAN/CSA C22.2 No. 60601-1, ANSI/AAMI ES60601-1:2005 / A2:2010, EN60601-1-2 Class B, FCC-B, RCM, RoHS, China RoHS, WEEE, CCC
Supplied Accessories (May vary by country. Please contact EIZO for details)Signal cables (DVI-D - DVI-D, BNC - D-Sub 15 pin), Utility Disk (PDF Instructions for Use)


TypeColor TFT LCD Panel (IPS)
Size48 cm / 19"
Native Resolution1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V)376.0 x 301.0 mm
Pixel Pitch (H x V)0.294 x 0.294 mm
Display Colors8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical)170° / 170°
Brightness (typical)330 cd/m²
Contrast Ratio (typical)900:1
Response Time (typical)18 ms (on/off)

Video Signals

Input TerminalsBNC (Composite), DVI-I, D-Sub 15 pin (Separate Sync, Composite Sync, SoG), S-Video
Digital Scanning Frequency (H / V)31-100 kHz / 48-85 Hz
Analog Scanning Frequency (H / V)24-100 kHz / 48-120 Hz
Sync FormatsSeparate, Composite, SoG


Power RequirementsAC 100-240 V: 50/60 Hz
Maximum Power Consumption58 W
Power Save ModeLess than 8 W
Power ManagementDigital: DVI DMPM
Analog: VESA DPM

Features & Functions

MiscellaneousForce Mode
SensorBacklight Sensor
OSD LanguagesEnglish, German

Environmental Requirements

Degree of ProtectionSCD 19102 D, SCD 19102 C: IP20
SCD 19102 CP: IP22 for front, IP20

Physical Specifications

Net WeightSCD 19102 D: 9.7 kg
Net Weight (without Stand)SCD 19102 C: 4.7 kg
SCD 19102 CP: 5.3 kg
Hole Spacing (VESA Standard)100x100 mm, M4, depth 7-9 mm
