With EIZO's video input moduls, modular LCD monitors such as the RadiForce EX271W can be easily adapted to local connectivity needs.

  • Enable the connection of different types of video input signals
  • Flexible connectivity and future-safe installation
  • Supports both legacy and state of the art systems
  • Cost effective, no need to purchase unnecessary connectors
  • Signal connector tailored to application requirements
  • Cable clutter and overall monitor footprint is reduced

This product is not produced anymore, but may still be available from stock.
contact your sales partner for more information.

Accessory - TRM0000-DVI

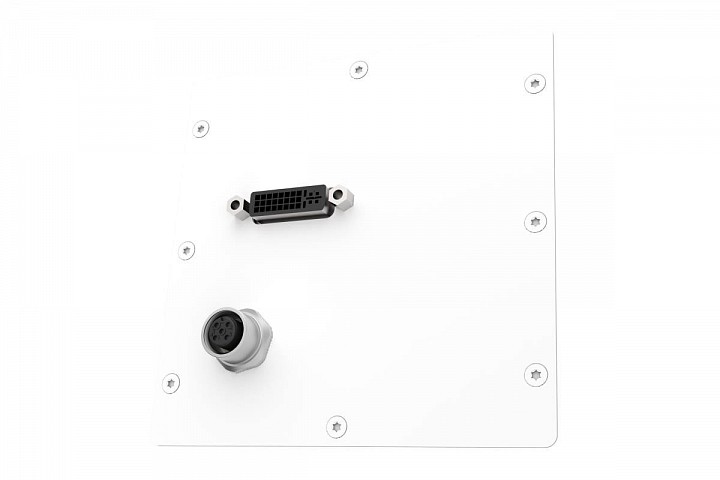

TRM0000-DVI input module

  • Single link DVI-I socket (analog pins are not used)
  • 1920 x 1080 at 50 - 70 Hz
  • Service and communication via DDC channel
Accessory - TRM0000-TDL

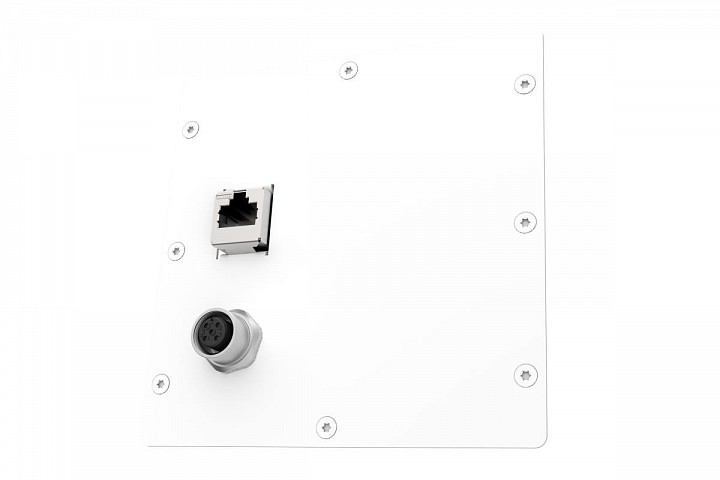

TRM0000-TDL input module

  • TDL connection via RJ45 socket
  • Compatible with EIZO's single link TDL transmitters
  • Service and communication via DDC channel
Accessory - TRM0000-3GS

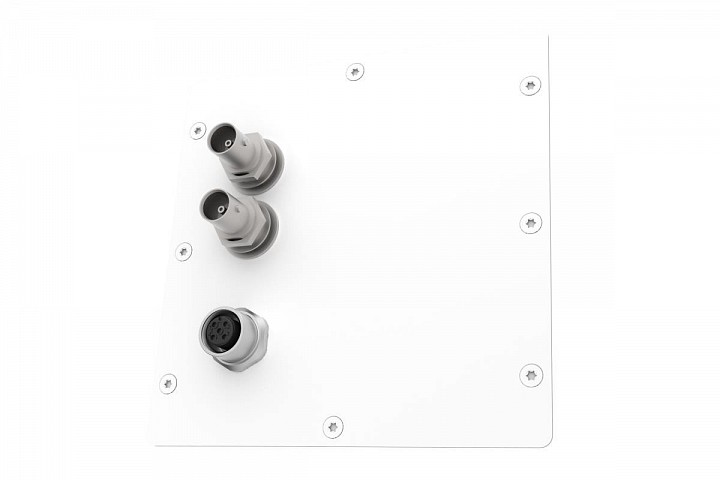

TRM0000-3GS input module

  • 3G-SDI connection signal via 3G-SDI BNC socket
  • Loop-through output, 3G-SDI signal via 3G-SDI BNC socket
  • Supports range of progressive and interlaced signals
Accessory - TRM0000-HDL

TRM0000-HDL input module

  • HDL (High Definition Link) connection via RJ45 socket
  • Compatible with EIZO's TID0102-HDL splitter
  • Service and communication via DDC channel


Model VariationsTRM0000-DVI: DVI Input
TRM0000-TDL: RJ45 Input
TRM0000-3GS: BNC Input
TRM0000-HDL: RJ45 Input
Cabinet ColorWhite
Supplied Accessories (May vary by country. Please contact EIZO for details)Mounting screws, EMC pad and holding plate (TRM0000-TDL), CD-ROM (documentation)

Interface Specifications

Input TerminalsTRM0000-DVI: DVI-D x 1
TRM0000-TDL: RJ45 x 1
TRM0000-3GS: BNC x 1
TRM0000-HDL: RJ45 x 1
Output TerminalsTRM0000-3GS: BNC x 1

Environmental Requirements

Degree of ProtectionTRM0000-DVI: IP42
TRM0000-TDL: IP41
TRM0000-3GS: IP54
TRM0000-HDL: IP41

Physical Specifications

Net WeightTRM0000-DVI: 0.15 kg
TRM0000-TDL: 0.16 kg
TRM0000-3GS: 0.16 kg
TRM0000-HDL: 0.16 kg
Dimensions (mm)Dimensions (W x H x D):
TRM0000-DVI: 115 x 115 x 23 mm
TRM0000-TDL: 115 x 115 x 32 mm
TRM0000-HDL: 115 x 115 x 32 mm
TRM0000-3GS: 115 x 115 x 32 mm
